ERICA 32 (30W / 60W / 80W / 100W ) High speed laser
22 506,00 €
AR PVN
Mehta ERICA 32 versions
• Working Area – 24” × 36” ( 60.96 cm × 91.44 cm )
• (30W / 60W / 80W / 100W ) Metal Laser Tube (SYNRAD, USA)
• Speed – Up to 82” IPS
• With Blower & Compressor
For more information:
Phone: +371 27008994
e-mail: uldis@revart.lv
Share on
Features
| AC Servo Motor Technology (Japan) for high speed and high precise movement control. |
| Pass-through front and rear doors to accommodate long working pieces. |
| Red beam dot pointer to helps to see the expected laser beam position for cutting and engraving. |
| Processing le path in display while running the machine. |
| Smart light module at working table area. |
| Virtual printer driver functions. |
| USB ash Drive supporting read le directly from USB Flash Drive, you can work even without PC. |
| Power brake function: to resume work in case of power of. |
| Speed 80 IPS* |

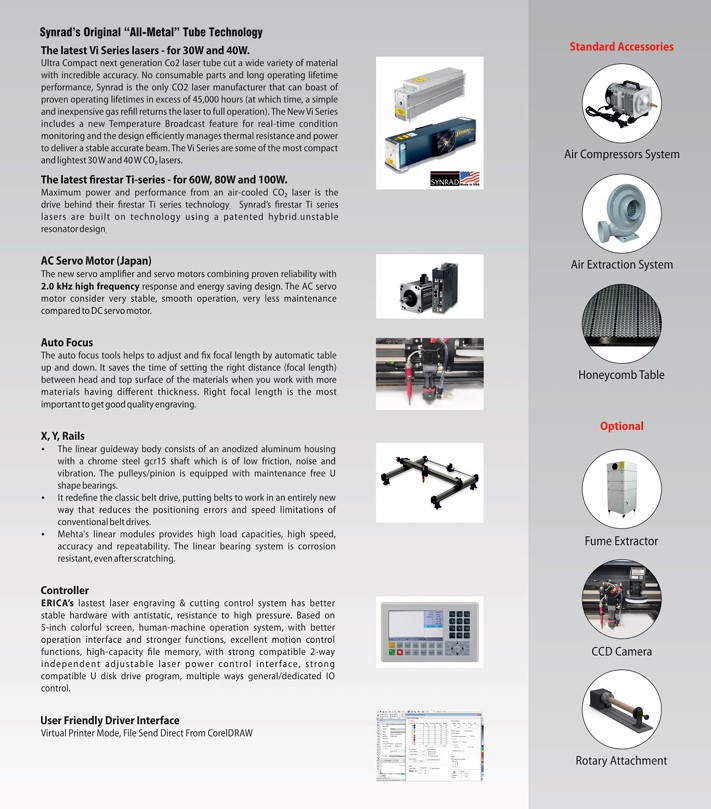

| The latest Vi Series lasers – for 30W and 40W. Ultra Compact next generation Co2 laser tube cut a wide variety of material with incredible accuracy. No consumable parts and long operating lifetime performance, Synrad is the only CO2 laser manufacturer that can boast of proven operating lifetimes in excess of 45,000 hours (at which time, a simple and inexpensive gas rell returns the laser to full operation). The New Vi Series includes a new Temperature Broadcast feature for real-time condition monitoring and the design efficiently manages thermal resistance and power to deliver a stable accurate beam. The Vi Series are some of the most compact and lightest 30 W and 40 W CO₂ lasers. |
| The latest restar Ti-series – for 60W, 80W and 100W. Maximum power and performance from an air-cooled CO₂ laser is the drive behind their restar Ti series technology, Synrad’s restar Ti series lasers are built on technology using a patented hybrid, unstable resonator design. |
| Auto Focus The auto focus tools helps to adjust and x focal length by automatic table up and down. It saves the time of setting the right distance (focal length) between head and top surface of the materials when you work with more materials having different thickness. Right focal length is the most important to get good quality engraving. |
X, Y, Rails
|
| Controller ERICA’s lastest laser engraving & cutting control system has better stable hardware with antistatic, resistance to high pressure. Based on 5-inch colorful screen, human-machine operation system, with better operation interface and stronger functions, excellent motion control functions, high-capacity le memory, with strong compatible 2-way independent adjustable laser power control interface, strong compatible U disk drive program, multiple ways general/dedicated IO control. |
| User Friendly Driver Interface Virtual Printer Mode, File Send Direct From CorelDRAW |
| Model | ERICA 30 | ERICA 32 | ERICA 43 | ||
| Power | 30W / 40W | 60W / 80W / 100W | 60 / 80 / 100 / 150 / 200W | ||
| Working Area | Cutting Area | 736 mm x 457 mm | 915 mm x 610 mm | 1220 mm x 915 mm | |
| Engraving Area | 666 mm x 457 mm | 840 mm x 610 mm | 1150 mm x 915 mm | ||
| Laser Source | Sealed Co2 Laser Tube (U.S.A.) | ||||
| Positioning Accuracy | 0.01mm | ||||
| Drive & Motor | A.C Servo Control (Japan) | ||||
| Maximum Speed | 80 IPS* | ||||
| Speed Control | Adjustable From 0.1 – 1000 mm/sec. (Up To20 Colour Linked Speed Setting Per Job) | ||||
| Power Control | Adjustable From 1.0 – 100% (Up To 20 Colour Linked Speed Setting Per Job) | ||||
| Z Axis Movement | Automatic up to 180mm | ||||
| Resolution (DPI) | Up to 4000 DPI | ||||
| Support Formate | HPGL, DWG, CDR, PLT, DXF, BMP, JPG, AI, GIF, TIFF, PSD | ||||
| Operating Environment | Air Cooled (Except 150 & 200W), Operating Environment Temperature 15 -30 C (59 -86 F) | ||||
| Memory Buffer | 128 MB | ||||
| Red Dot Pointer | Yes | ||||
| Computer Interface | U-Disk, USB, Ethernet | ||||
| Display Panel | 5 Inch TFT Full color Colorful LCD Screen Showing Current File Name,Total Working, Laser Power & Engraving Speed | ||||
| Engraving Capability | 256 Level Gray Scale Image Processing Capabillity | ||||
| Computer Systems | Win 7/8/10, 32/64 Bit | ||||
| Pass Through Doors | Yes | ||||
| Virtual Printer Driver | Support CorelDRAW Direct Out Put | ||||
| Safety | Class Ii 3R For Red Pointer, Class I Laser Product Compliant with En60825, Class 4 Laser Product Compliant with CDRH with the optional pass-through door module | ||||
| Fume Extraction Systems | External exhaust system with minimum flow rate 1200m3/h (CFM 706 ft3/h). Connection output 4” Diameter | ||||
| Power consumption | 1100W | 2500W | 2500W | ||
| Operating Voltage | 220-230 AC / 10 A, 50/60 Hz | ||||
| Machine Dimensions (W x L x H) | 1300 x 1081 x 1070 mm | 1486 x 1241 x 1045 mm | 1825 x 1510 x 1150 mm | ||
| Weight | 342 kg | 385 kg | 405 kg | ||
| Specifications are liable to change without prior notice. All trademarks mentioned are property of their respective owners. *Speed Does not equal to throughput | |||||

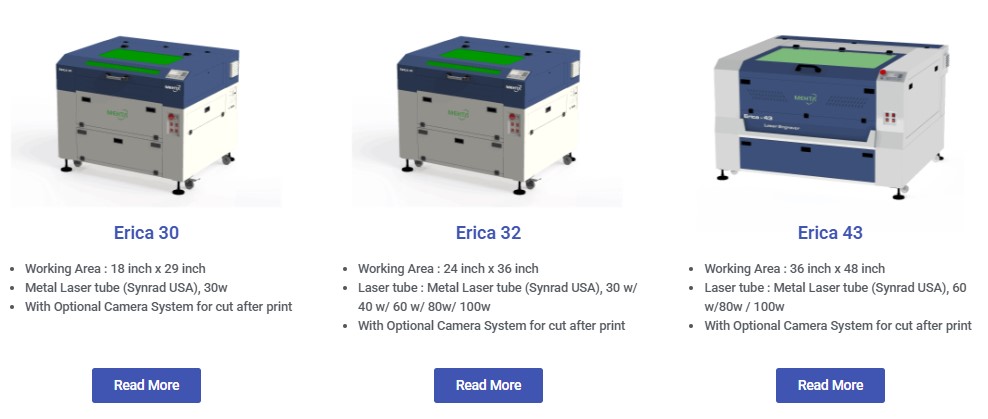

Erica Series other models
