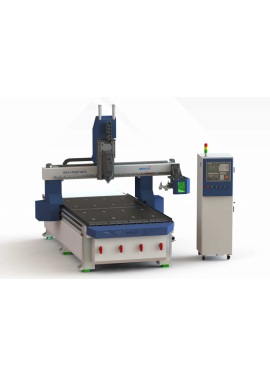

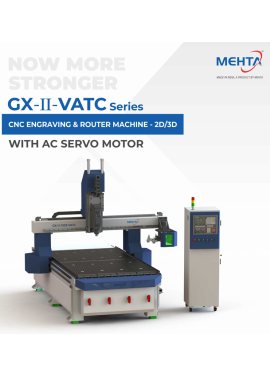

GX II-2030V-ATC (With 8.5 KW Spindle & All Standard Accessories) 2000 x 3000 x 300 mm
49 852,00 €
AR PVN
Noliktavā pēdējās preces
Spindle 8 kw, Hiteco – Italian
ATC (Automatic Tool Changer)
AC servo motor, high speed
With Vacuum bed and pump
Share on
- * Spindle 8 kw, Hiteco – Italian
- * ATC (Automatic Tool Changer)
- * AC servo motor, high speed
- * With Vacuum bed and pump
Product Details:

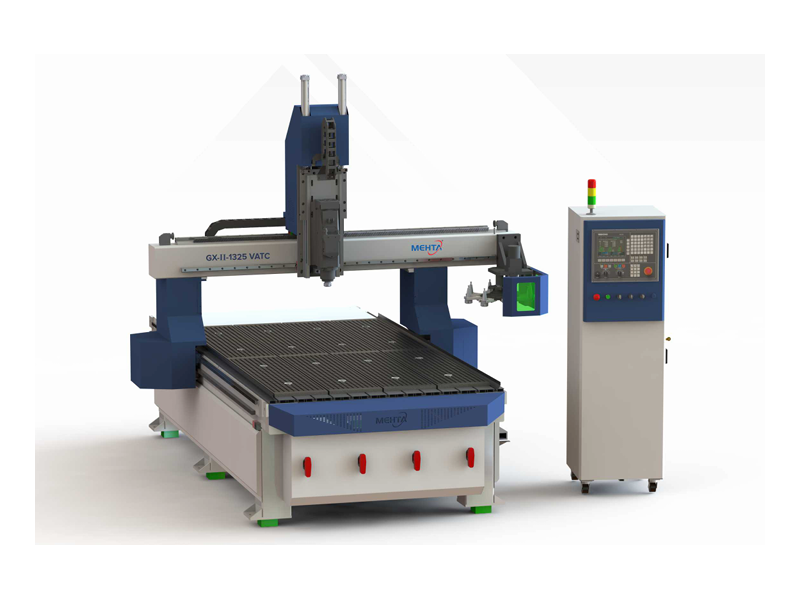

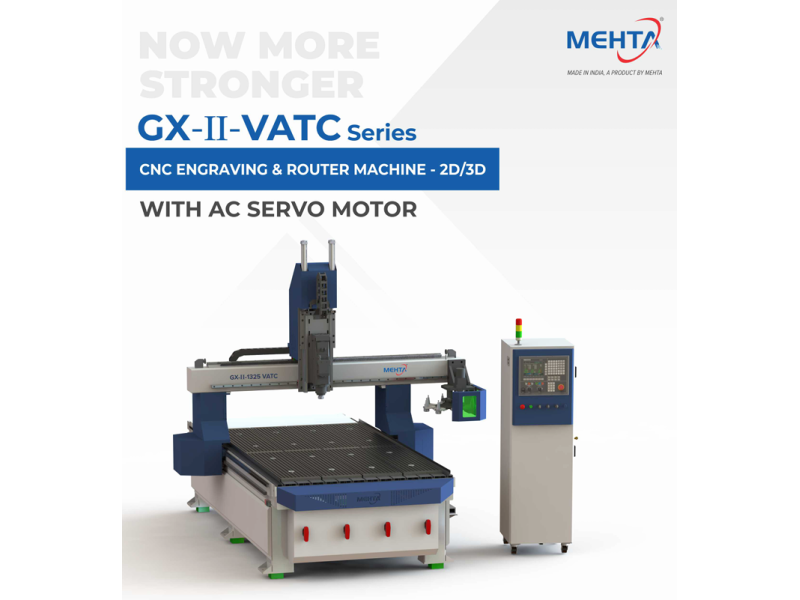

The GX Series CNC Engraving & Router represents the pinnacle of Mehta’s CNC router lineup, designed to handle
the most demanding tasks with ease. Featuring a robust, heavy-weight construction, premium rack & pinion, and
high-quality LM guide, this model is engineered for superior performance. Its sturdy design ensures vibration-free
operation, prolonging tool life and maintaining precision. Ideal for high-speed 3D carving, flush door production,
and modular furniture manufacturing, the GX Series is also well-suited for milling on plastic and other materials.
Built for excellence, it delivers unmatched reliability and versatility.
1 Working Area (X, Y, Z) : 2000 x 3000 x 300 mm
2 Spindle : 8.5 kw (Hiteco, Italian) Air Cool ATC Spindle
3 Spindle Speed : 24000 RPM
4 Maximum Travalling Speed : 45 mtr/min
5 Motor and Drive : AC Servo Motor (Panasonic) and Drive

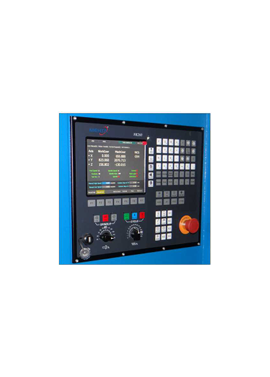

6 Controller : High Speed NK 280 Integrated System (advance controller) with Display
7 Transmission : Helical Rack and Pinion with Gear Box

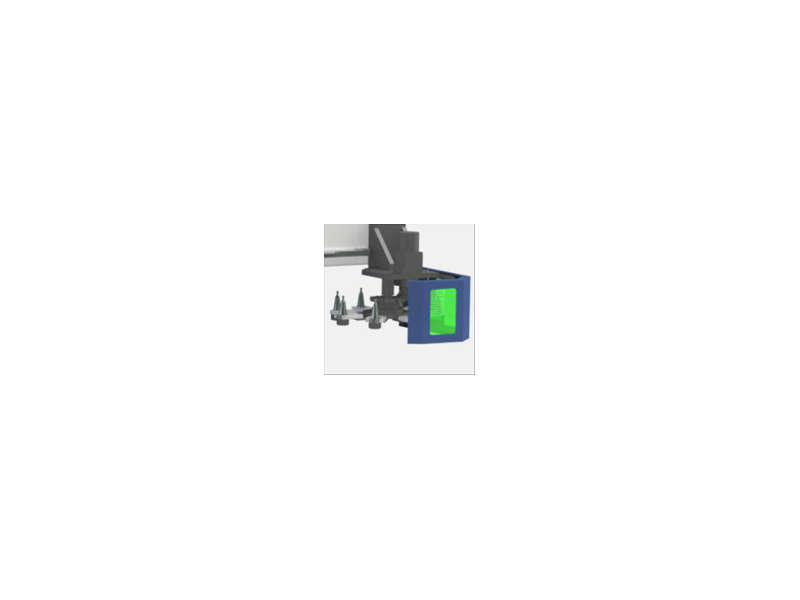

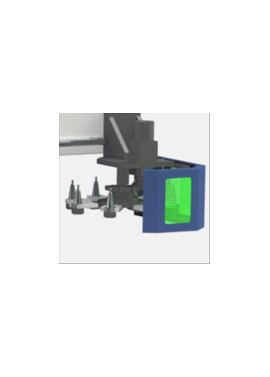

8 Automatic Tool Changer :
8 tool Disc type changer on X axis
9 Working Bed : High Pressure Vacuum Table with Re-generative Blower - 2Nos.
10 Power Supply : AC 440/3Ph
11 Dust Collector System : Inclusive
Features
| Heavy duty frame structure. |
| X, Y and Z axis are driven by AC SERVO motor (JAPAN) which gives more accuracy and speed than our LX Series and RX Series CNC Routers. |
| High positional accuracy, heavy work load and long life is ensured by HIWIN brand 30 mm square linear guideways. |
| Original Italian spindle gives you very stable, trouble-free, maintenance-free, performance for long period of time. |
| Fast speed and high accuracy ensured by gear transmission equipped on CNC Router. |
| Periodic lubrication maintenance provided by lubrication system which gives long life to mechanical parts. |
| If any electronic part get damaged during running operation, Auto Stop Mode Function stops the machine and so the tool or material doesn’t get damaged. |
| Axis drive system: X, Y – Rack. Z – Ball Screw. |
| Working table is covered with rigid PVC sheet for long life of aluminum T slot table. |

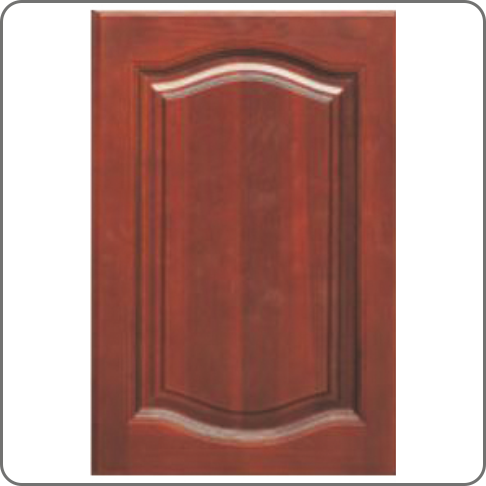

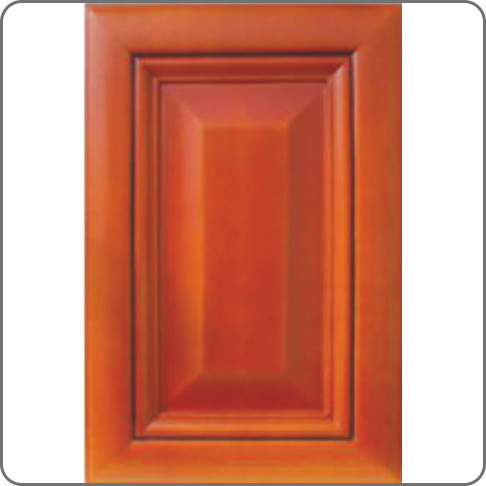

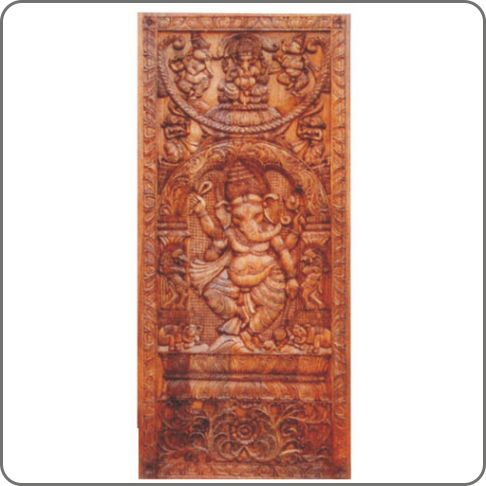

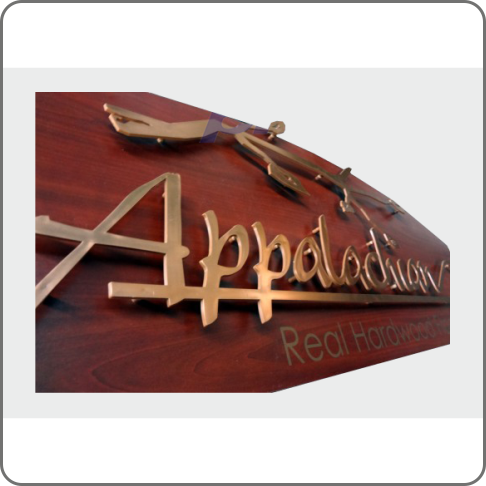

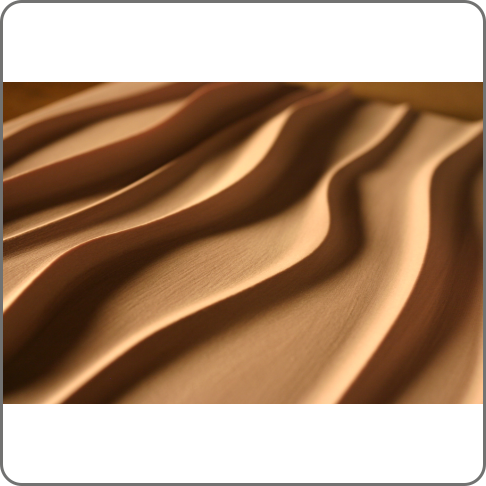

Application
Technical Specification GX ATC series other models:
| Model | GX-1325V ATC | GX-1530V ATC | ||
| Outer Dimension | 2865 x 2560 x 3683 mm | 3065 x 3660 x 3683 mm | ||
| Working Area (X, Y, Z) | 1300 x 2500 x 300 mm | 1500 x 3000 x 300 mm | ||
| Spindle | 9 KW (Optional 10 KW & 12 KW) ,HSD Italian | |||
| Spindle Speed | 24000 RPM | |||
| Maximum Travelling Speed | 45 mtr/min | |||
| Position Accuracy | 0.02 mm | |||
| 3 Axis Control Motor | AC Servo Motor | |||
| Controller | High Speed NK 280B Integrated System | |||
| Collet | ER32, Max 16mm Dia Tool | |||
| Automatic Tool Changer | BT30 ISO30, 8 Positions | |||
| Material Holding | Vacuum Combined T-slot | |||
| Power Supply | AC 440/3PH | |||
| Weight | 2000 Kg. Approx | 2500 Kg. Approx | ||
| Specification are liable to change without prior notice. | ||||
Optional
Vacuum Bed System
Multi Spindle Router
German Becker pump
Dust Collector
Other Cnc Router LX series
Ring Type Blower
