FX-2030V-ATC (With 6 KW Spindle & All Standard Accessories) 2000 x 3000 x 300 mm
€35,174.70
Tax included
Last items in stock
With 6 KW Air Cooled Spindle
With AC Servo Motor & Gearbox
High Speed | Stable | Cost Effective
Share on
- With 6 KW Air Cooled Spindle
- With AC Servo Motor & Gearbox
- High Speed | Stable | Cost Effective
Product Details:

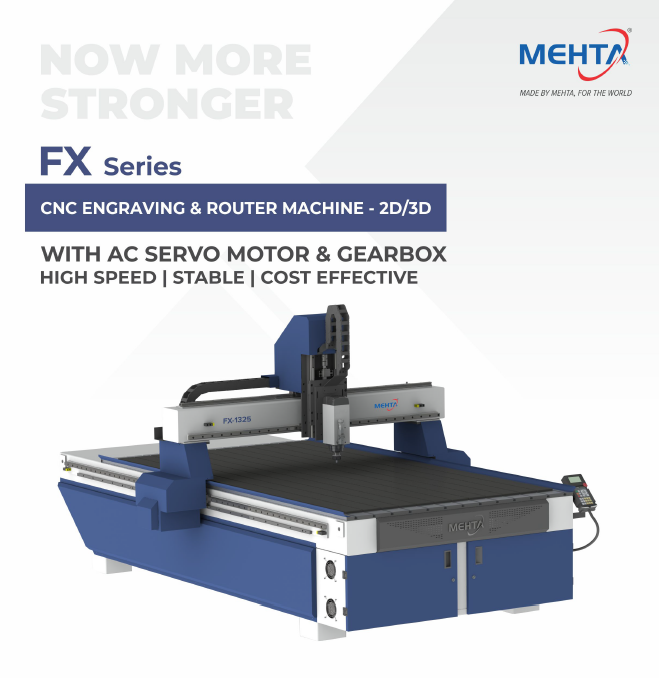

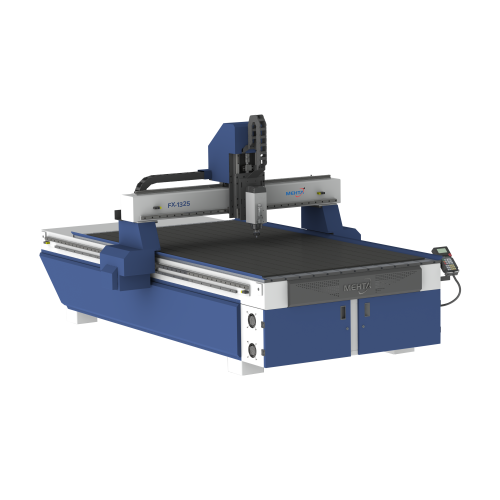

The FX Series CNC Engraving & Router is equipped with an advanced AC servo motor and a robust gearbox system,
replacing traditional belt systems for enhanced performance. Built with a heavy-duty structure, this high-speed
machine offers unparalleled advantages over stepper motor routers, including superior accuracy, stability, speed,
and longevity. Featuring an original Italian spindle, German/Taiwan rack & pinion system, and a top-quality
controller, the FX Series ensures exceptional reliability and delivers a seamless, trouble-free experience.
Model No. : FX-2030V-ATC (With 6 KW Spindle & All Standard Accessories):
Machining Area (X, Y, Z) : 2000 x 3000 x 300 mm
2 Spindle : 6.0 KW Air Cooled ATC spindle
3 Spindle RPM : 18000 max.
4 Transmission : X and Y axis Transmit by Helical Rack & Pinion With Gear Box

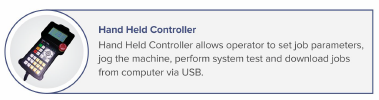

5 Operating System : New Advanced Hand Held Controller
6 Tool Diameter : Ø3 to Ø16 mm
7 Driving System : AC Servo Motor (Leadshine)
8 Max. Travelling Speed : 30 m/min
9 Type of Working Table : High Pressure Vacuum Table with Re-generative Blower - 2Nos.
10 Power Supply : AC 420V/3PH
11 Automatic Tool Changer : 8 tool Linear type
12 Dust Collector System : Inclusive

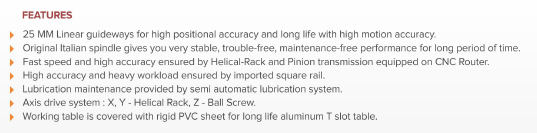

| 25 MM Linear guideways for high positional accuracy and long life with high motion accuracy. |
| Original Italian spindle gives you very stable, trouble-free, maintenance-free performance for long period of time. |
| Fast speed and high accuracy ensured by gear transmission equipped on CNC router. |
| High accuracy and heavy workload ensured by imported square rail. |
| Lubrication maintenance provided by semi automatic lubrication system. |
| Axis drive system : X, Y – Helical Rack, Z – Ball Screw. |
| Working table is covered with rigid PVC sheet for long life aluminum T slot table. |

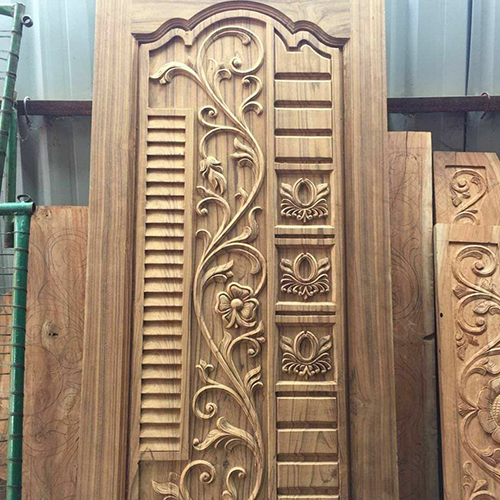

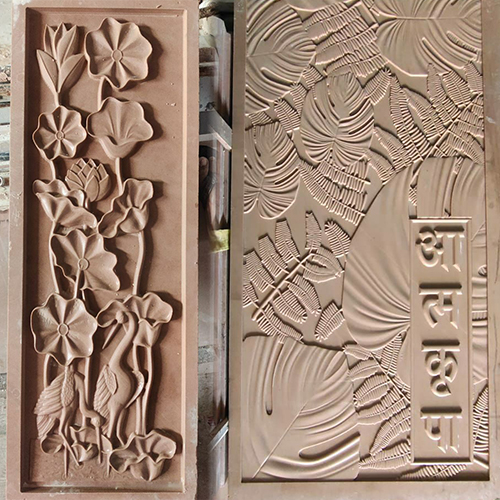

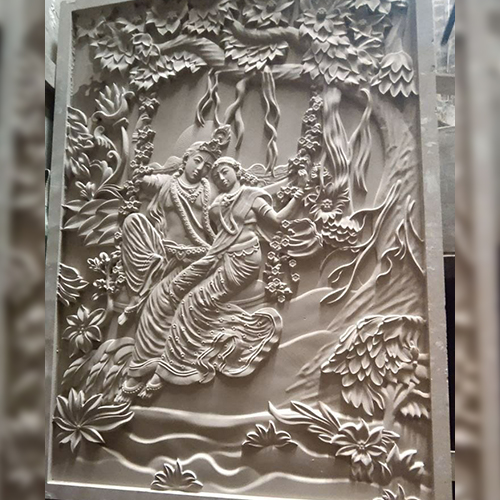

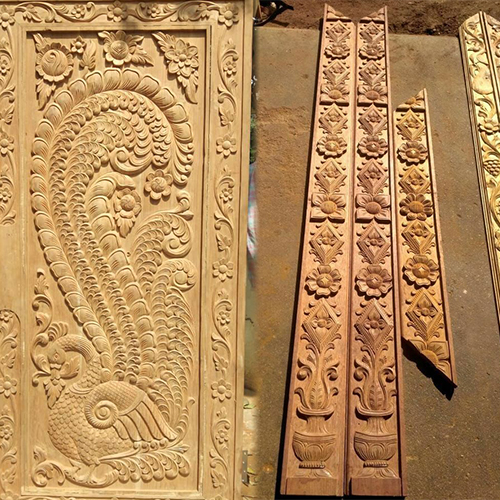

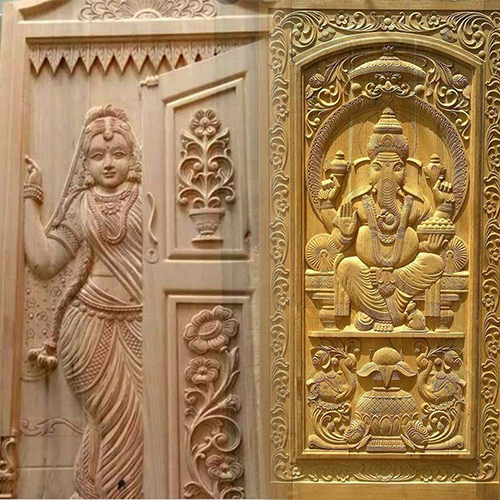

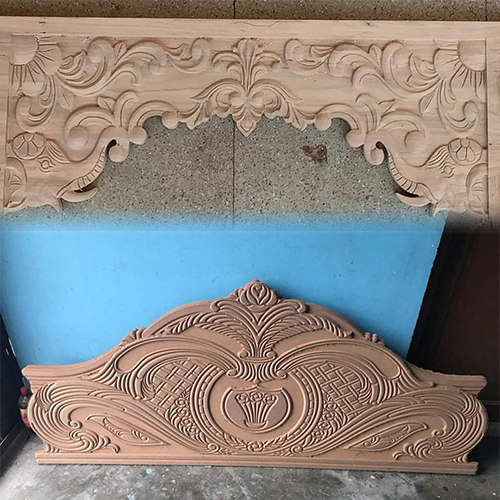

Applications
Technical specification other FX series models:
| Model | FX-II-1325 |
| Outer Dimension | 2150 x 3300 x 1700 mm |
| Working Area (X, Y, Z) | 1300 x 2500 x 200 mm |
| Spindle | 6 KW Air Cooled |
| Spindle Speed | 18000 RPM |
| Distance Between Bed & Gentry | 200 mm |
| Maximum Travelling Speed | 30 mtr/min |
| Cutting Tool Diameter | Ø3 to Ø16 mm |
| Repeated Location | 0.025 mm |
| Operating System | DSP-Hand Held Controller |
| Driving System | AC Servo Motor with Gear Box |
| Power Supply | AC 420V / 3PH |
| Weight | 970 Kg. |
Optional
Vacuum Bed System
Multi Spindle Router
German Becker pump
Dust Collector
Other CNC Router LX series
Ring Type Blower
Specification
...
...
